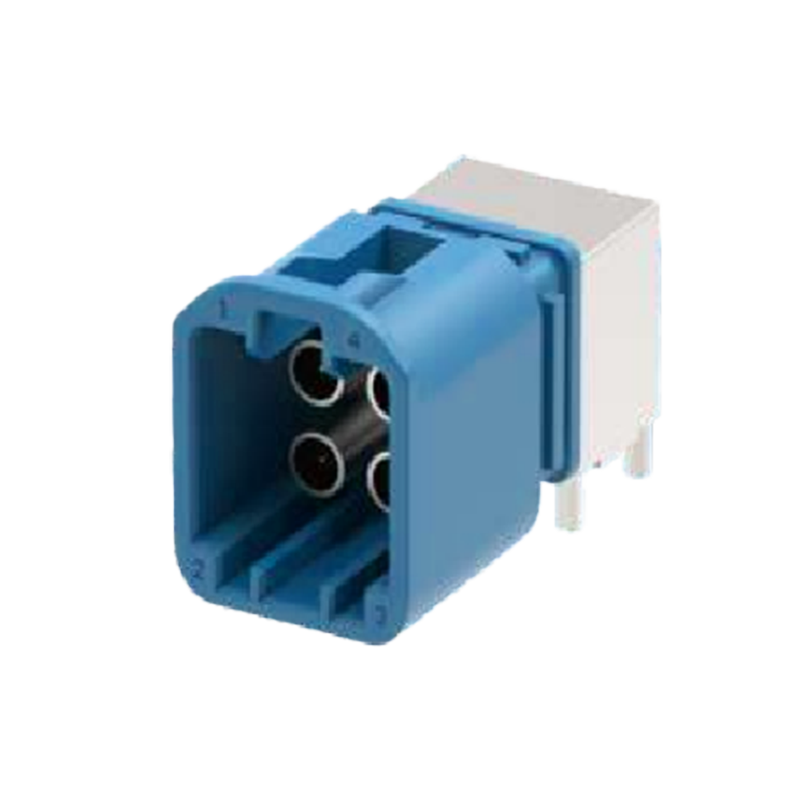

4 in 1 PCB Connector(Type T)

Class：Automotive Connector,FAKRA Connector

Description:

4 in 1 PCB Connector,Right Angle,Plug

Wire：N/A

Waterproof: No

Latch: A,B,C,N,Z

Application:

Autonomous Driving

360°Full View Monitor System

Advanced Driving Assistance System

Antenna

This premium 4-in-1 right-angle PCB FAKRA connector (Type T) meets USCAR-2 standards and RoHS compliance. Designed for automotive critical systems like ADAS and autonomous driving, it features 50Ω impedance, DC-9GHz frequency range and low insertion loss (≤0.1×√f(GHz)dB@1GHz) for reliable transmission. Boasting ≥25 mating durability, 110N min retention force and -40℃~+105℃ operating temp, it’s trusted for 360° monitors and vehicle antennas.

Electrical Specifications
Impedance	Frequency	Dielectric Withstanding Voltage	Contact Current	Center Contact Resistance	Outer Contact Resistance	Return Loss	Insertion Loss	Insulation Resistance
50Ω	DC-9GHz	800Vrms	1A DC Max Depends on wire size	15mΩ Max	5mΩ Max	25 dB Min	≤0.1×√f(GHz)dB@1GHz	1000 MΩ Min

Mechanical Characteristics
Connector Durability	Retention Force Latch	Engagement Force Waterproof	（4Ports) Engagement Force	（4Ports) Disengagement Force
≥25 cycles	110 N Min	/	60 N Max	5 N Min

Environmental Specifications
Operating Temperature Range	Temperature&Humidity Cycling	Vibration & Mechanical Shock	Thermal Shock	RoHS
-40℃ to +105℃	USCAR-2	USCAR-2	USCAR-2	RoHS Compliance
