Class：Automotive Connector,FAKRA Connector
Description:

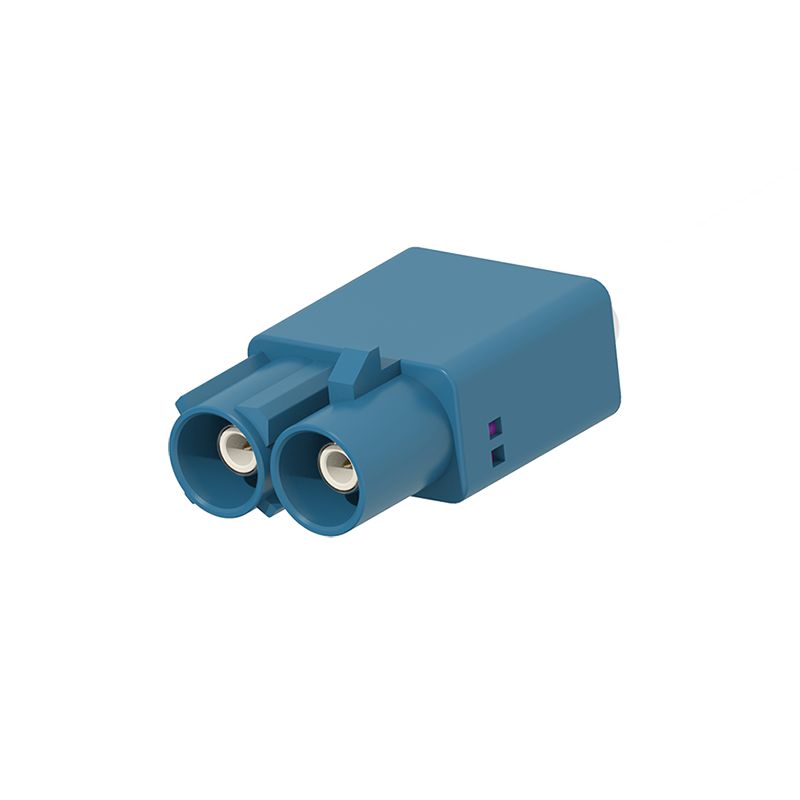

Cable Connector,Dual,Straight,Plug
Wire：RG174/RG316/Dacar 302/RG58 or equivalent
Waterproof: Yes
Coding: A,B,C,N,Z
Application:
Navigation
Autonomous Driving
Infotainment System
360°Full View Monitor System
Advanced Driving Assistance System
Antenna, Blue Tooth
Internet & Mobile Communication
As a premium automotive waterproof FAKRA connector, this dual straight cable plug meets USCAR-2 standards and RoHS compliance. Compatible with RG174/RG316/RG58/Dacar 302 wires, it features 50Ω impedance, DC-6GHz frequency range and low insertion loss for stable transmission. With A/B/C/N/Z coding, ≥25 mating durability and -40℃~+105℃ operating temp, it’s trusted for ADAS, vehicle infotainment and navigation systems.
| Electrical Specifications | ||||||||
| Impedance | Frequency | Dielectric Withstanding Voltage | Contact Current | Center Contact Resistance | Outer Contact Resistance | Return Loss | Insertion Loss | Insulation Resistance |
| 50Ω | DC-6GHz | 800Vrms | 1A DC Max Depends on wire size | 10mΩ Max | 5mΩ Max | 18 dB Min | ≤0.1×√f(GHz)dB@1GHz | 1000 MΩ Min |
| Mechanical Characteristics | ||||||||
| Connector Durability | Retention Force Latch | Engagement Force Waterproof | Engagement Force | Disengagement Force | ||||
| ≥25 cycles | 110 N Min | 45 N Max | 25 N Max | 2 N Min | ||||
| Environmental Specifications | ||||||||
| Operating Temperature Range | Temperature&Humidity Cycling | Vibration & Mechanical Shock | Thermal Shock | RoHS | ||||
| -40℃ to +105℃ | USCAR-2 | USCAR-2 | USCAR-2 | RoHS Compliance | ||||
