Class：Automotive Connector,Type C Connector
Description:

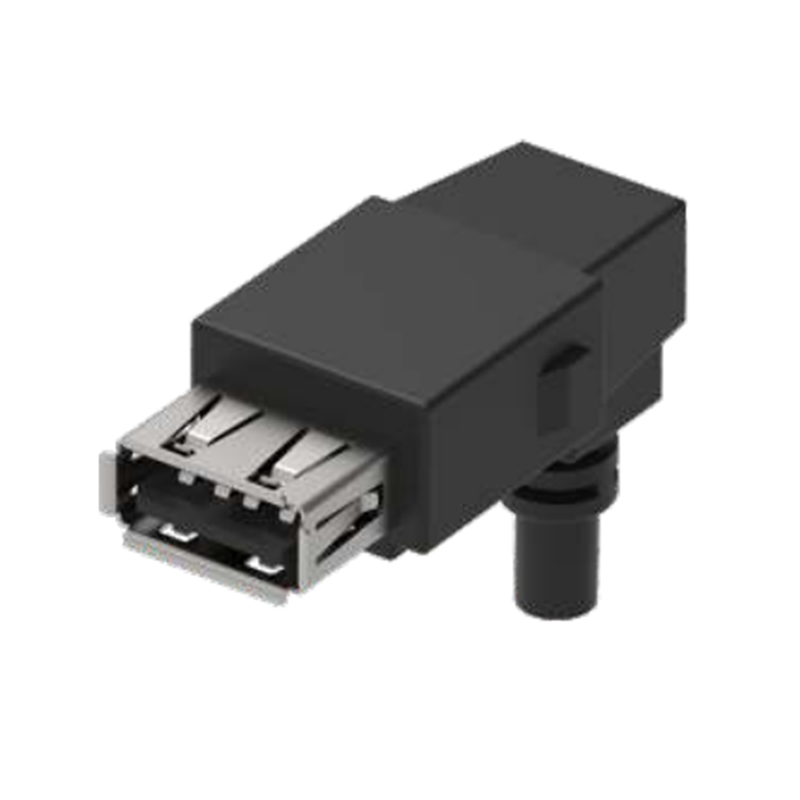

Cable Connector,Single,Right Angle,Jack
Wire：USB 2.0 or equivalent
Waterproof: Yes
Coding: A,B,C,N,Z
Application:
LVDS
USB 2.0
Display
Camera Connection
Rear Seat Connection
| Electrical Specifications | ||||||||
| Impedance | Frequency | Dielectric Withstanding Voltage | Contact Current | Center Contact Resistance | Outer Contact Resistance | Insulation Resistance | ||
| 90Ω | DC-2GHz | 500Vrms | 2.5A DC Max Depends on wire size | 30mΩ Max | 30mΩ Max | 100 MΩ Min | ||
| Mechanical Characteristics | ||||||||
| Connector Durability | Retention Force Latch | Coding Efficiency | Engagement Force | Disengagement Force | ||||
| ≥20 cycles | 98N Min | 80N Min | 60N Max | 60N Min | ||||
| Environmental Specifications | ||||||||
| Operating Temperature Range | Temperature&Humidity Cycling | Vibration & Mechanical Shock | Thermal Shock | RoHS | ||||
| -40℃ to +105℃ | USCAR-2 | USCAR-2 | USCAR-2 | RoHS Compliance | ||||
