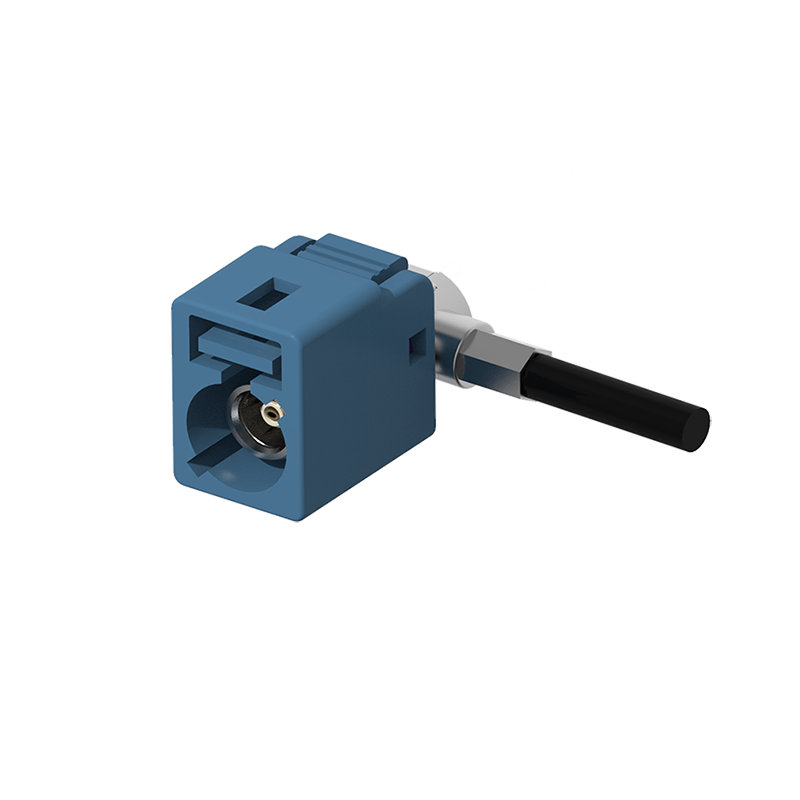

Cable Connector,Single,Right Angle

Class：Automotive Connector,FAKRA Connector

Description:

Cable Connector,Single,Right Angle,Jack

Wire：RG174/RG316/Dacar 302/RG58 or equivalent

Waterproof: Yes

Coding: A,B,C,N,Z

Application:

Navigation

Autonomous Driving

Infotainment System

360°Full View Monitor System

Advanced Driving Assistance System

Antenna, Blue Tooth

Internet & Mobile Communication

Automotive waterproof FAKRA jack – single right-angle cable connector compatible with RG174/RG316/Dacar 302/RG58 wires. Boasting A/B/C/N/Z coding, 50Ω impedance & DC-6GHz bandwidth, it ensures low contact/insertion loss for stable signal. Ideal for ADAS, navigation, infotainment and vehicle communication, -40℃~+105℃ range, USCAR-2 & RoHS compliance – a reliable right-angle waterproof FAKRA connector for automotive electronics.

Electrical Specifications
Impedance	Frequency	Dielectric Withstanding Voltage	Contact Current	Center Contact Resistance	Outer Contact Resistance	Return Loss	Insertion Loss	Insulation Resistance
50Ω	DC-6GHz	800Vrms	1A DC Max Depends on wire size	10mΩ Max	5mΩ Max	18 dB Min	≤0.1×√f(GHz)dB@1GHz	1000 MΩ Min

Mechanical Characteristics
Connector Durability	Retention Force Latch	Engagement Force Waterproof	Engagement Force	Disengagement Force
≥25 cycles	110 N Min	45 N Max	25 N Max	2 N Min

Environmental Specifications
Operating Temperature Range	Temperature&Humidity Cycling	Vibration & Mechanical Shock	Thermal Shock	RoHS
-40℃ to +105℃	USCAR-2	USCAR-2	USCAR-2	RoHS Compliance
