Class：Cable Assemblies
Description:

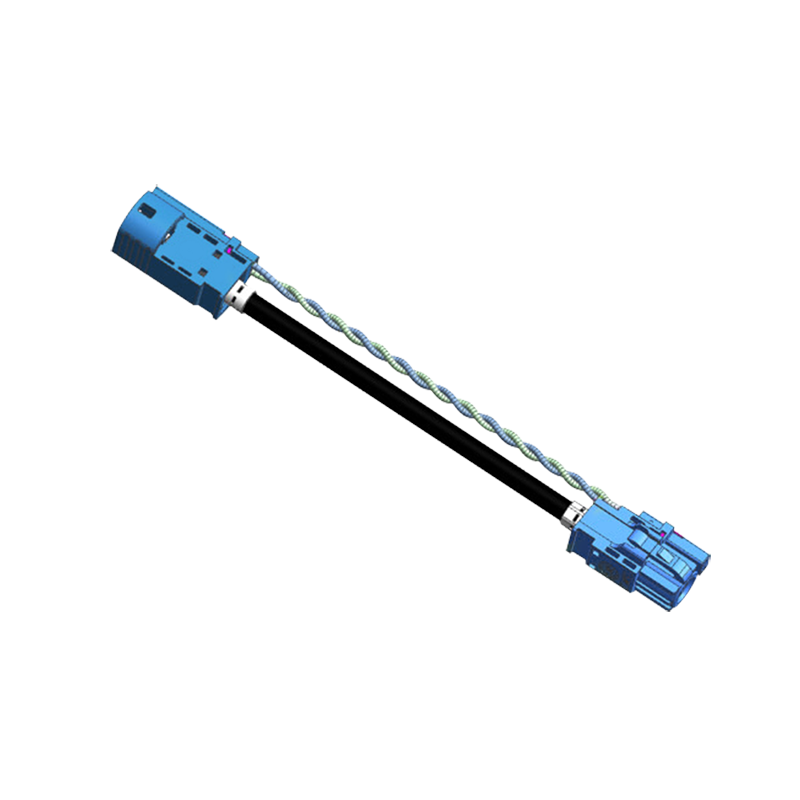

HSD Cable,+ 2 Power Pins
Wire：Dacar 535 or equivalent
Waterproof: Yes
Coding: A,B,C,N,Z
Application:
HD Camera
USB 2.0 3.0
LVDS
Display
Infotainment System
Ethernet
Radio Devices
| Electrical Specifications | ||||||||
| Impedance | Frequency | Dielectric Withstanding Voltage | Contact Current | Center Contact Resistance | Outer Contact Resistance | Return Loss | Insulation Resistance | |
| 100Ω | DC-2GHz | 250Vrms | 3A DC Max @ 85℃ ambient temperature | 10mΩ Max | 7.5mΩ Max | 18 dB Min | 100 MΩ Min | |
| Mechanical Characteristics | ||||||||
| Connector Durability | Retention Force Latch | Coding Efficiency | Engagement Force | Disengagement Force | ||||
| ≥25 cycles | 110 N Min | 80N Min | 30 N Max | 5 N Min | ||||
| Environmental Specifications | ||||||||
| Operating Temperature Range | Temperature&Humidity Cycling | Vibration & Mechanical Shock | Thermal Shock | RoHS | ||||
| -40℃ to +105℃ | USCAR-2 | USCAR-2 | USCAR-2 | RoHS Compliance | ||||
