Class：Automotive Connector,FAKRA Connector
Description:

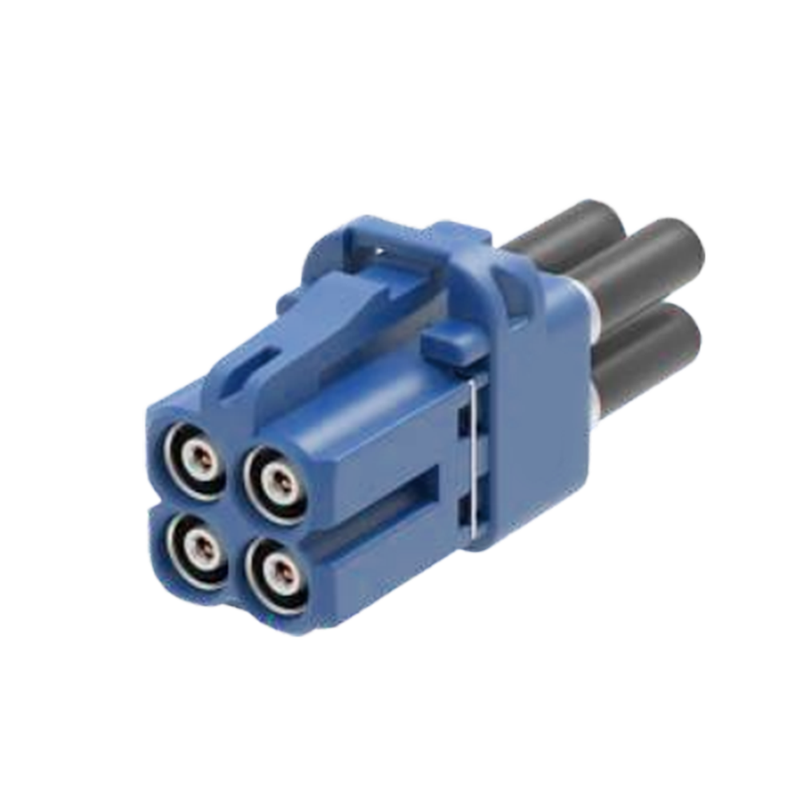

4 in 1 Cable Connector,Straight,Jack
Wire：RG174/RG316/Dacar 302 or equivalent
Waterproof: Yes
Coding: A,B,C,N,Z
Application:
Autonomous Driving
360°Full View Monitor System
Advanced Driving Assistance System
Antenna
| Electrical Specifications | ||||||||
| Impedance | Frequency | Dielectric Withstanding Voltage | Contact Current | Center Contact Resistance | Outer Contact Resistance | Return Loss | Insertion Loss | Insulation Resistance |
| 50Ω | DC-9GHz | 800Vrms | 1A DC Max Depends on wire size | 15mΩ Max | 5mΩ Max | 25 dB Min | ≤0.1×√f(GHz)dB@1GHz | 1000 MΩ Min |
| Mechanical Characteristics | ||||||||
| Connector Durability | Retention Force Latch | Engagement Force Waterproof | （4Ports) Engagement Force | （4Ports) Disengagement Force | ||||
| ≥25 cycles | 110 N Min | 45 N Max | 60 N Max | 5 N Min | ||||
| Environmental Specifications | ||||||||
| Operating Temperature Range | Temperature&Humidity Cycling | Vibration & Mechanical Shock | Thermal Shock | RoHS | ||||
| -40℃ to +105℃ | USCAR-2 | USCAR-2 | USCAR-2 | RoHS Compliance | ||||
