Class：Automotive Connector,FAKRA Connector
Description:

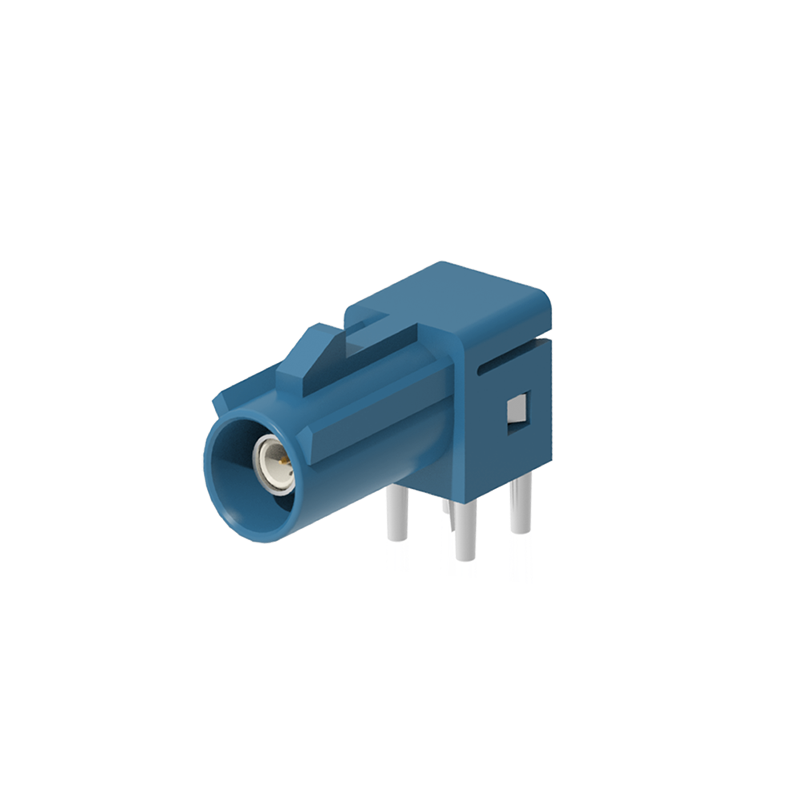

PCB Connector,Single,Right Angle,Plug
Wire：N/A
Waterproof: No
Coding: A,B,C,N,Z
Application:
Navigation
Autonomous Driving
Infotainment System
360°Full View Monitor System
Advanced Driving Assistance System
Antenna, Blue Tooth
Internet & Mobile Communication
This single right-angle FAKRA automotive PCB connector is perfect for navigation, autonomous driving and infotainment systems. It features 50Ω impedance, DC-6GHz wide frequency range, low insertion loss and high return loss for stable signal transmission. With ≥25 mating cycles, -40℃ to +105℃ operating temperature and USCAR-2 compliance, it’s durable and reliable. Boasting minimal contact resistance and strong insulation, RoHS-compliant, it’s a top choice from Chinese manufacturers for automotive electronic connectivity.
| Electrical Specifications | ||||||||
| Impedance | Frequency | Dielectric Withstanding Voltage | Contact Current | Center Contact Resistance | Outer Contact Resistance | Return Loss | Insertion Loss | Insulation Resistance |
| 50Ω | DC-6GHz | 800Vrms | 1A DC Max Depends on wire size | 10mΩ Max | 5mΩ Max | 18 dB Min | ≤0.1×√f(GHz)dB@1GHz | 1000 MΩ Min |
| Mechanical Characteristics | ||||||||
| Connector Durability | Retention Force Latch | Engagement Force Waterproof | Engagement Force | Disengagement Force | ||||
| ≥25 cycles | 110 N Min | / | 25 N Max | 2 N Min | ||||
| Environmental Specifications | ||||||||
| Operating Temperature Range | Temperature&Humidity Cycling | Vibration & Mechanical Shock | Thermal Shock | RoHS | ||||
| -40℃ to +105℃ | USCAR-2 | USCAR-2 | USCAR-2 | RoHS Compliance | ||||
